The GUI¶

The GUI is built using viser. judo automatically creates sliders, buttons, and other GUI elements for you when the corresponding configs are registered.

Sliders¶

Sliders represent float or int parameters. We provide the slider decorator to make it easy to adjust the min, max, and step size of the corresponding slider GUI element. For example:

@slider("my_param1", min_val, max_val, step_size)
@dataclass
def MyTaskConfig(TaskConfig):
    my_param1: float = 1.0
    my_param2: int = 2  # this will have a default slider

If you don’t supply the decorator, the slider limits are automatically registered as

min_val = 0
max_val = default * 2
step_size = (max_val - min_val) / 100

In the GUI, if you type a value in the text box next to a slider, it will adjust it live (warning: this means that for values of more than one character, it reads the updates as the characters are typed). If the value typed in the field exceeds the limits, the limits update to accommodate.

numpy Array Fields¶

For numpy array fields, we provide the convenience field utility np_1d_field for fine-grained control over the sliders for all of the array elements. Additionally, sometimes the array field might correspond to some visualization you want to show in the GUI. For example, in the cylinder_push task, we have a field that specifies the goal position. The np_1d_field function also provides ways to show a small spherical visualization. In the case of the cylinder_push task, the config looks like this:

from judo.utils.fields import np_1d_field

@dataclass
class CylinderPushConfig(TaskConfig):
    """Reward configuration for the cylinder push task."""

    w_pusher_proximity: float = 0.5
    w_pusher_velocity: float = 0.0
    w_cart_position: float = 0.1
    pusher_goal_offset: float = 0.25
    goal_pos: np.ndarray = np_1d_field(
        np.array([0.0, 0.0]),
        names=["x", "y"],
        mins=[-1.0, -1.0],
        maxs=[1.0, 1.0],
        steps=[0.01, 0.01],
        vis_name="goal_position",
        xyz_vis_indices=[0, 1, None],
        xyz_vis_defaults=[0.0, 0.0, 0.0],
    )

The vis_name field specifies the name of the visualization object in the GUI backend, so it doesn’t matter that much. xyz_vis_indices indicates which indices of the array to use for the x, y, and z coordinates of the visualization. If you set it to None, it will use the default values specified in xyz_vis_defaults.

cylinder_push_config

Visualizing Traces¶

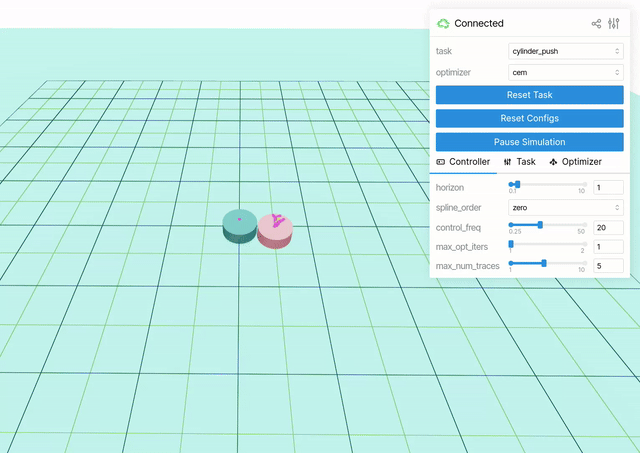

In the above gif, you can see visualizations of the traces of the sim rollouts from the controller. We can automatically register traces for visualization by editing the corresponding XML of the mujoco system.

In particular, we must have a framepos sensor with the substring trace in its name. For example, in the cylinder_push task, we have the following:

<!-- We strip out everything but the relevant sites and sensors in this XML. -->
<mujoco model="cylinder_push">
    <body name="pusher" pos="0 0 0">
      <site pos="0 0 0.15" name="pusher_site"/>
    </body>
    <body name="cart" pos="0 0 0">
      <site pos="0 0 0.15" name="cart_site"/>
    </body>
  </worldbody>

  <!-- These sensors are what create the traces in the GUI! -->
  <sensor>
    <framepos name="trace_pusher" objtype="site" objname="pusher_site"/>
    <framepos name="trace_cart" objtype="site" objname="cart_site"/>
  </sensor>
</mujoco>
